Motor
●Asynchronous single-phase two-pole motor
(two voltage configuration:115/230V)
●NEMA service factor:single phase ODP motor
●Insulation class: F
●Continuous operation capability
●Built-in overheat protection short circuit device
Parameter
|
Model
|
HP
|
Head(m)
|
GPH
|
GPM
|
L*W*H(cm)
|
GW(KG)
|
|
|

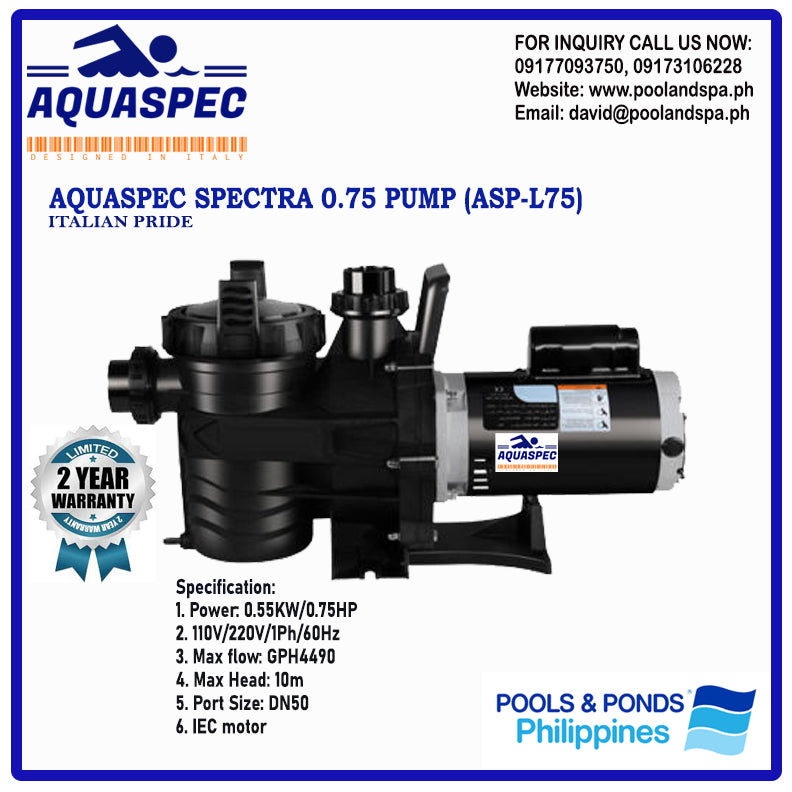

ASP-L75
|
0.75
|
8.5
|
4491
|
75
|
58*26*39
|
11.1
|
|
|
ASP-L100
|
1
|
12
|
5548
|
92
|
58*26*39
|
11.7
|
|
|
ASP-L120
|
1.2
|
14.5
|
6341
|
106
|
66*26*41
|
14.1
|
|
|
ASP-L150
|
1.5
|
16.5
|
6605
|
110
|
66*26*41
|
15.3
|
|
|
ASP-L200
|
2
|
19
|
7398
|
123
|
66*26*41
|
16.5
|
|
|

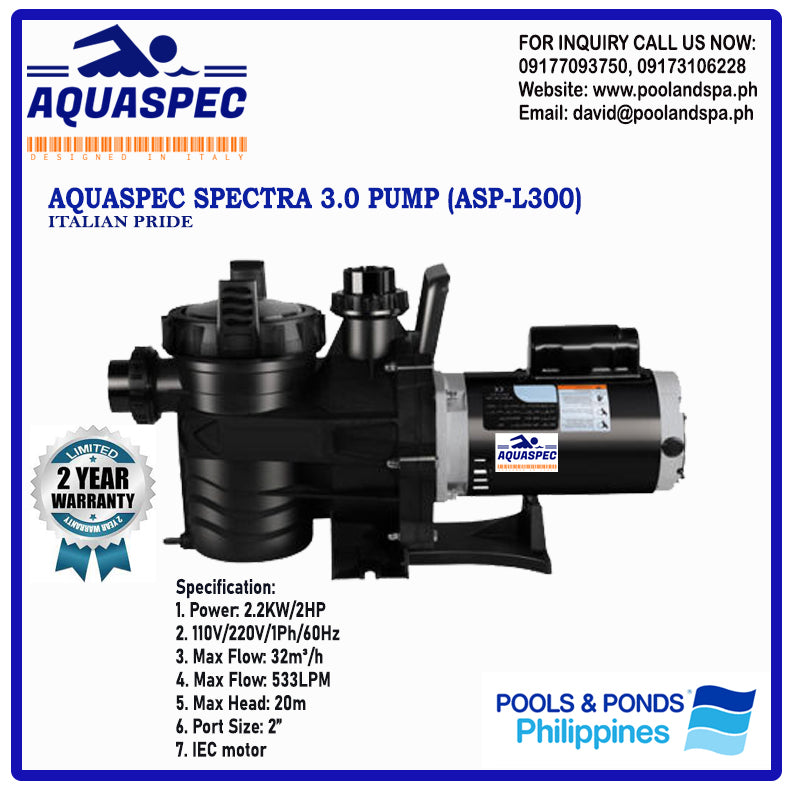

ASP-L300
|
3
|
23.5
|
9500
|
600
|
66*26*41
|
|
|
|
ASP-L400
|
4
|
23.5
|
9510
|
158.50
|
66*26*41
|
27.6
|
Technical Advantages
Technical
CFD Hydraulic Model be designed in Euro R&D center with higher efficiency than competitor
ODP Motor
Insulation class: F.NEMA service factor:single phase ODP motor.Built-in overheat protection short circuit device
Impeller
Impeller be designed in Euro R&D center with much more energy saving
Mechanical Seal
Mechanical Seal module material:Graphite/Silicon Carbide
Well Made Coil
Well made coil with a built in thermal protector allows longer lifetime of the motor.
SS Shaft
High-precision Stainless Steel shaft with higher strength and reduce the noise
Various Plug Available
Pump power plug can be custominzed to any style you need to meet local standard in every Country.
Perspective Cover & Pressing Cap
Material PC+10%GF
Filter Basket
Material:PP
Motor Fan Cover
Material:Stainless Steel
