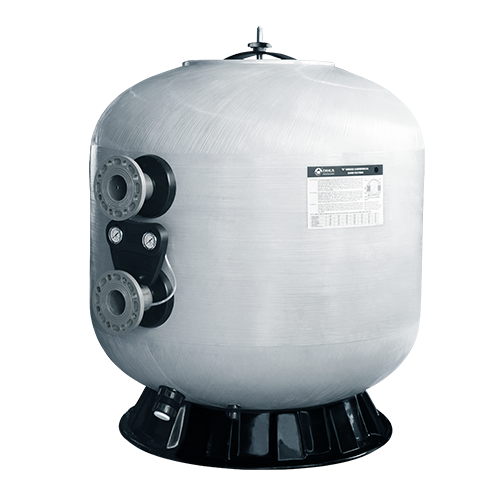

Emaux E Series Commercial Filter With Laterals

EXCELLENT PERFORMANCE WITH DEEP SAND BED

For competition swimming pool, aquatic park, aquarium, spa, fountain and water treatment plant.

Emaux is capable to design and manufacture a wide variety of commercial sand filters constructed by a multiple-layer moulded structural inner layer, and a continues outer filament winding by computer controlled winding machines.




FEATURES


1 Multi-construction layers: non-corrosive and chemical protective

2 UV resistance, suitable for operation underprolong sunlight

3 High filtration standard with depth sand bed

4 Bobbin wound fiberglass reinforcement with polyester resin

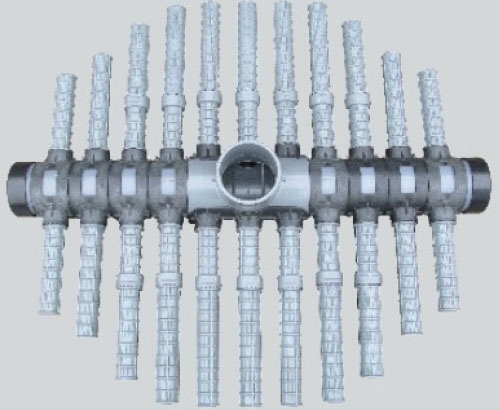

5 Available with laterals or nozzles plate system for air scouring capabilities gravel

9014801	E1050	Ф1.05M E Filter,Ф3" Flange in/outlet, 2.5 Bar, Laterals
9014805	E1200	Ф1.2M E Filter,Ф3" Flange in/outlet, 2.5 Bar, Laterals
9014809	E1400	Ф1.4M E Filter,Ф4" Flange in/outlet, 2.5 Bar, Laterals
9014813	E1600	Ф1.6M E Filter,Ф4" Flange in/outlet, 2.5 Bar, Laterals
9014817	E1800	Ф1.8M E Filter,Ф6" Flange in/outlet, 2.5 Bar, Laterals
9014821	E2000	Ф2.0M E Filter,Ф6" Flange in/outlet, 2.5 Bar, Laterals
9014825	E2200	Ф2.2M E Filter,Ф8" Flange in/outlet, 2.5 Bar, Laterals
9014802	E1050	Ф1.05M E Filter,Ф3" Flange in/outlet, 4 Bar, Laterals
9014806	E1200	Ф1.2M E Filter,Ф3" Flange in/outlet, 4 Bar, Laterals
9014810	E1400	Ф1.4M E Filter,Ф4" Flange in/outlet, 4 Bar, Laterals
9014814	E1600	Ф1.6M E Filter,Ф4" Flange in/outlet, 4 Bar, Laterals
9014818	E1800	Ф1.8M E Filter,Ф6" Flange in/outlet, 4 Bar, Laterals
9014822	E2000	Ф2.0M E Filter,Ф6" Flange in/outlet, 4 Bar, Laterals
9014826	E2200	Ф2.2M E Filter,Ф8" Flange in/outlet, 4 Bar, Laterals
