Prominent Chlorine Dioxide System Bello Zon® CDKc

Regular price
Call For Price 09173106228
Sale price
₱0.00

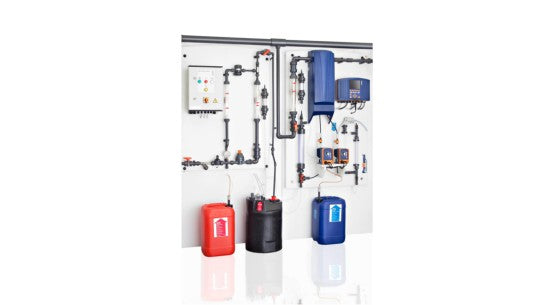

Chlorine Dioxide System Bello Zon® CDKc

8 – 12,000 g/h chlorine dioxide. Max. flow rate at 0.2 ppm ClO2 metering is 60,000 m3/h

Chlorine dioxide system for continuous production, metering and monitoring of chlorine dioxide with concentrated chemicals. Bello Zon®CDKc is a ready-to-use convenient system with integrated intrinsically safe pre-dilution station.

Bello Zon® CDKc is a deluxe system, persuading customers with its safe handling of chemicals.

This chlorine dioxide system includes an intrinsically safe pre-dilution station for concentrated hydrochloric acid. The consumption of hydrochloric acid can therefore be adapted on site to the individual operating conditions. Savings of up to a quarter of the acid quantity are possible. The special reactor concept generates chlorine dioxide safely and simply with maximum output. Food-compatible PVDF is used instead of PVC generally used in the industry. This results in improved operating safety and reliability and improved purity of the chlorine dioxide generated. The central system controller manages the precise production of the chlorine dioxide. All parameters relevant for water treatment are recorded and logged.

The stroke lengths of ProMinent® metering pumps are monitored online. This rules out hazardous operating statuses arising from incorrect pump stroke length adjustments. The precise production of chlorine dioxide is managed by the central system control. Chlorine dioxide, chlorite, pH or ORP potential sensors DULCOTEST® are directly connected to the two mA inputs. The chlorine dioxide is monitored in the treated water and documented. The chlorine dioxide concentrations in the water can be adjusted automatically depending on the measurement by the integrated PID controller. The integrated data logger documents all status messages and measured values, which the screen writer then visualises on the clear colour display. The systems meet all the requirements of the DVGW specifications W 224 and W 624 with regard to construction and operation and are designed for operation with concentrated chemicals chlorite (24.5% NaClO2) and acid (25-36% HCl).

Your benefits

  • Cost saving through minimal acid consumption
  • Cost-effective operation by the use of inexpensive concentrated output chemicals
  • Efficient operation, thanks to production, metering and monitoring of ClO2 with just one system
  • Maximum operating safety and purity of the CIO2 produced through the use of PVDF reactors
  • Integrated measuring and control technology
  • Perfect quality management, thanks to integrated storage of all operating parameters and measured values

Field of application

  • Municipal potable water and waste water treatment
  • Industrial process and cooling water

Technical Details

Power supply

  • 100-230 V, 50/60 Hz

Inputs

  • 2 freely configurable analogue inputs (0/4-20 mA)
  • 7 digital inputs for monitoring
  • 1 digital input for contact water meter 0.25 – 20 Hz
  • 1 frequency input for water meter 10 – 10,000 Hz

Outputs

  • 1 operating signal relay
  • 1 alarm signal relay
  • 1 warning signal relay
  • Mains output for control of the bypass pump
  • 1 freely configurable analogue output (0/4-20 mA)
  • 1 +5 V voltage output as supply voltage for water meter with Hall sensor

Operating substances

  • 24.5% sodium chlorite, purity as per EN 938
  • Hydrochloric acid 25 – 36% purity according to EN 939
  • Particle-free water

Degree of protection

  • IP 65

Technical Data

Type 1) Chlorine dioxide dosing capacity* 1) Max. operating pressure** Operating temp. Connection dimensions of chlorite and acid metering pumps Dimensions of the bypass connector
  min.-max./hour min./day
g/h g/d bar °C DN
CDKc 150 8-150 56 8 10–40 6x4 25
CDKc 400 20-400 140 8 10–40 8x5 25
CDKc 900 45-900 300 8 10–40 8x5 32
CDKc 2000 100-2,000 700 5 10–40 8x5 40
CDKc 2800 140-2,800 700 5 15–40 8x5 40
CDKc 7300 365-7,300 1,750 3 15–40 DN 10 40
CDKc 12000 600-12,000 1,750 2 18–40 DN 10 40
Type 1) Dimensions*** H x W x D (mm) Weight*** Power consumption (max.) **** Power uptake
      230 V 115 V
mm kg A A W
CDKc 150 1,380 x 880 x 320 55 0.7 1.2 130
CDKc 400 1,650 x 880 x 445 80 0.9 1.2 180
CDKc 900 1,920 x 920 x 510 95 1.4 2.5 250
CDKc 2000 1,880 x 1,320 x 570 160 2.2 3.5 410
CDKc 2800 1,880 x 1,320 x 570 160 2.2 3.5 410
CDKc 7300 2,250 x 1,850 x 460 175 5.5 6.4 640
CDKc 12000 2,250 x 1,850 x 460 180 5.5 6.4 640
* The metering figures relate to 5 or 2 bar back pressure and an ambient temperature of 20 °C. The minimum capacity/per hour is based on the fact that when the system is operating at below 5% of the nominal power, continuous metering is no longer possible, due to the correspondingly low pumping frequency of the metering pumps. When systems are not operating continuously, the reactor contents must be changed at least twice daily. The system should not, therefore, be operated below the stated minimum capacity/day.
** At 35 °C ambient temperature
*** Without bypass pump, flushing valve and water supply line
**** 230 V figure with bypass pump (CDKc 150-900), 115 V figures without bypass pump
1) Subject to technical and design changes.

Dimensions of the pre-dilution unit (H x W x D) for CDKc 150 - 12,000: 1,200 x 900 x 300 mm
