Bypass Fittings for Sensors
Your sensors are ideally accommodated in the bypass fitting. This fitting ensures optimum measuring conditions.
In-flow measurement
We offer a range of bypass fittings for specific integration into processes. They hold potentiometric and amperometric sensors as well as conductivity sensors and ensure optimum operating conditions for measurement.
DLG III Type In-Line Probe Housing
In-line probe housing type DLG III to hold 2 sensors (conductivity, Pt 100, pH or ORP sensors) with PG 13.5 screw-in thread plus one sensor with R 1" screw-in thread (amperometric sensors) with integrated stainless steel pin as liquid reference potential.
On the inlet side the DLG III is equipped with a plastic ball valve for blocking and adjusting the sample water flow.
With this: Sample water cup with backwash fitting and connecting line with connector for liquid potential equalisation, length 5 m.
| Material |
Material: Rigid PVC Transparent housing cup: Polyamide Ball valve material: Rigid PVC |
| Max. pressure | 1.0 bar |
| Max. temperature | 55 °C |
| Typical applications | Cooling water, slightly contaminated waste water, turbid water, no sludge |
| Type | Max. temperature | Order no. | |
|---|---|---|---|
| °C | |||
| DLG III A with PVC hose connectors | for PE line Ø 8/5 mm | 55 | 914955 |
| DLG III A with flushing connector and PVC hose connection | for PE line Ø 8/5 mm | 55 | 1029096 |
| DLG III B with PVC adhesive connectors | for pipe connection Ø 16 DN 10 | 55 | 914956 |
| Assembly kit for fitting amperometric sensors | – | 55 | 815079 |
DLG Sampling Water Cup
| Order no. | |
|---|---|
| DLG III sampling water cup with back flush device | 1029095 |
Connecting Lead
| Order no. | |
|---|---|
| Connector cable | 818438 |

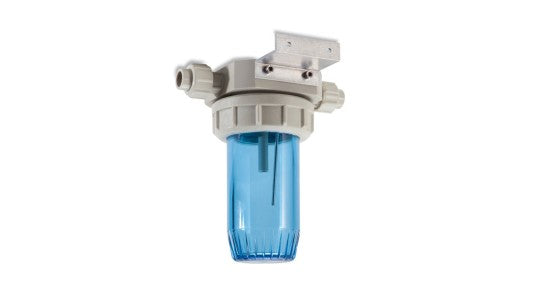

DLG IV Type In-Line Probe Housing
In-line probe housing type DLG IV to hold 4 sensors (pH, ORP, Pt 100, conductivity) with PG 13.5 screw-in thread. With integrated stainless steel rod as liquid reference potential and bracket for wall mounting.
| Material |
Material: Hard PVC or PP Transparent housing cup: Polyamide |
| Max. pressure | 1.0 bar |
| Connection for sample water line | Union with d 16/DN 10 insert |
| Type | Max. temperature | Order no. | |
|---|---|---|---|
| °C | |||
| DLG IV PP | for Ø 16/DN 10 pipe work connector | 80 | 1005331 |
| DLG IV PVC | for Ø 16/DN 10 pipe work connector | 55 | 1005332 |
