Prominent Electrolysis System DULCO®Lyse- Output: Up to 300 m3/h of water disinfection - poolandspa.ph
Prominent Electrolysis System DULCO®Lyse- Output: Up to 300 m3/h of water disinfection - poolandspa.ph

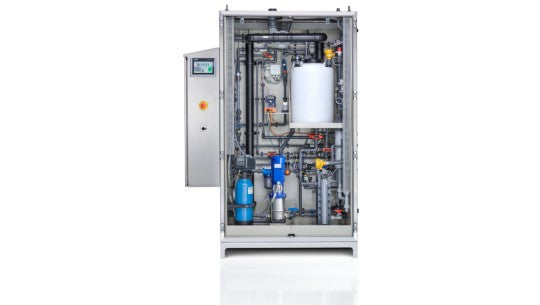

Prominent Electrolysis System DULCO®Lyse- Output: Up to 300 m3/h of water disinfection

Regular price
Call For Price 09173106228
Sale price
₱0.00

Output: Up to 300 m3/h of water disinfection with the lowest concentration of by-products

Efficient production of DULCO®Lyt 400 with an exceptionally low chloride and chlorate content. Maximum protection against corrosion and very good cost efficiency because of low chloride.

Innovative disinfection. The benefits for you: Minimum chlorate and chloride content.

Electrolysis systems of the type DULCO®Lyse generate pure hypochlorous acid in a vacuum process. A saturated solution of sodium chloride is produced in a salt-dissolving tank, included in the scope of delivery, and this solution is then electrolysed in a diaphragm cell. Chloride-free sodium hydroxide and hydrogen are produced in the cathode chamber, while ultra-pure chlorine gas and dilute residualDescribes the ability of a substance to have a long-term effect. Brine are produced in the anode chamber, separated by the diaphragm from the cathode chamber. The chlorine gas produced is immediately separated from the residual brine and dissolved as hypochlorous acid. The sodium hydroxide is temporarily stored and added to hypochlorous acid through a metering pump. The result is a neutral, highly effective and extremely low-chloride and low-chlorate disinfection solution, temporarily stored in the product tank until metered through separate metering stations. The hydrogen produced is diluted with fresh air through an ATEX-inspected fan and discharged safely. The diluted residual brine is fully discarded. To achieve this, the diluted brine is strongly diluted with softened water, neutralised by the addition of sodium hydroxide and disposed of in the sewer. Any residual chloride and chlorate are thus disposed of and are not mixed with the process water. DULCO®Lyse systems can thus be compared with pure chlorine gas in terms of their oxidation strength and chloride and chlorate content in the process water. The salt dissolving water comes from a softening system integrated in the DULCO®Lyse system, thereby preventing the formation of lime deposits and ensuring the long service life of the electrolytic cell.

Your benefits

  • Ultra-low chlorate content for disinfection with minimal by-products
  • Extremely low chloride content for maximum protection and freedom from corrosion within the plant
  • Environmentally-friendly, highly effective disinfection
  • Long-term freedom from germs, without any transport, storage or handling of concentrated chemicals
  • Handling of chemicals is reduced (only sodium chloride is required)
  • Compact, space-saving design

Field of application

  • Food industry

  • Beverage industry



Technical Details

  • Modern PLC Programmable Logic Controller with large illuminated display
  • Integrated Remote Control Engineer for remote diagnosis and troubleshooting
  • Supplied ready for connection in stainless steel housing
  • Duplex softening system
  • ATEX-certified bleeding system
  • Integrated salt dissolving tank with level monitoring

Power supply: 1 x 230 Volt (V AC/1P/N/PE/50 Hz)

Dimensions (H x W x D): 2,100 x 1,250 x 610 mm


Scope of delivery:

DULCO®Lyse electrolysis systems are assembled ready-wired in a sealed stainless steel or open cabinet

  • PLC (Programmable Logic Controller) in the attached control cabinet
  • Integrated softening system
  • Electrolysis cell(s)
  • ATEX-certified bleeding system
  • Integrated salt dissolving tank with level monitoring
  • Ultrasound level probe for the DULCO®Lyt product tank
  • Piping between the salt-dissolving storage tank and DULCO®Lyse system
  • 25 kg salt for commissioning
  • Hardness control measuring device
  • pH4 + pH7buffer solution

Material not included in the scope of delivery:

  • Sodium hydroxide (33 % needed for commissioning)
  • DULCO®Lyt product tank
  • DULCO®Lyt metering station
  • Piping outside of the DULCO®Lyse
