Prominent Immersion Fittings for Sensors

Regular price
Call For Price 09173106228
Sale price
₱0.00

pH V1

FOR 2-WIRE SYSTEM

Your sensor is ideally accommodated in the immersion fitting. This fitting ensures optimum measuring conditions.

Immersion Assembly Type IMA-ICT 2

Immersion fitting to hold one inductive conductivity sensor of type ICT 2.

Material

Fittings: Stainless steel 1.4404

Seal: FKM

Max. temperature 125 °C
Max. pressure 10 bar
Length when fitted 1 m
Immersion lance diameter 70 mm
Flange Stainless steel flange DN 80 PN 16

Dimensions Table: Flange

Flange DN 65/PN 16
Ø D 200 mm
Ø K 160 mm
Ø d2 8 x 18 mm
b 20 mm
Ø a 63.5 mm
Screws M 16



Adaptation to processes through flange installation in tank from top.

  • pk_6_094

Immersion Assembly Type TA-LM

Immersion fitting to hold one conductivity sensor of type LM or LMP with M 28 thread for side fastening with pipe clips (2 included in the scope of delivery) or with union nut/collar bush/screw-in part for fastening at top of tank cover.

Note: Union nut and screw-in part are to supplied by the customer (standard parts).

Material PP
Max. temperature 70 °C
Enclosure rating IP 68
Max. pressure 5.0
Immersion lance diameter 32 mm
Pipe length 890 mm
Length Order no.
mm
TA-LM 890 1020632
Headed bush d50 1020634
Extension tube 1000 910 1020633
  • pk_6_053
  • pk_6_078
  • pk_6_079

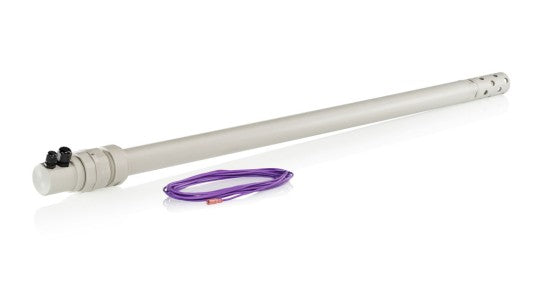

PP Immersion Assembly Type lPHa 1-PP

Immersion fitting for holding one sensor (e.g. pH, ORP) with PG 13.5 screw-in thread and standard 120 mm length. The inside diameter is sized so that either pH or ORP transducers can be installed. In addition, a stainless steel rod is integrated as a liquid reference potential. The outside diameter is 40 mm. Immersion depths of 1 and 2 m are offered, however customers can independently lengthen or shorten the immersion pipe. The fitting head contains two cable connectors; measuring lines of 3-7 mm diameter can be led out.

Note: Measuring lines are not included in the scope of delivery.

Material

Probe housing material: PP

Seal material: FKM

Max. temperature 80 °C
Pressure Installation at atmospheric pressure
Immersion depth Max. 1, or 2 m; variable
Immersion lance diameter 40 mm

Dimensions Table: Flange

Fixed flange DN 40
Hole circle Ø K 110 mm
Bolts 4 x M16
Thickness d2 18 mm
Diameter Ø D 150 mm



Length when fitted Order no.
m
IPHa 1-PP 1 1008600
IPHa 1-PP 2 1008601

Other materials available on request.

FKM = Fluorine Rubber

Accessories for Fitting Type IPHa 1

Order no.
Immersion pipe mounting for IPHa 1-PP 1008624
Clamped threaded connector with fixed flange DN 40 according to DIN 2642 for lPHa 1-PP 1008626
Clamped threaded connector for welding connection for lPHa 1-PP 1008628
Protective (weatherproofed) cover for assembly head for IPHa 1-PP 1008630
Water-retaining basin for IPHa 1-PP 1008632
Weatherproof cover PP 1023368
  • pk_6_080
  • pk_6_094_flansch

PP Immersion Assembly Type lPHa 3 -PP

Immersion fitting to hold up to three sensors (e.g. pH, ORP, temperature) with PG 13.5 screw-in thread and standard 120 mm length. The inside diameter is dimensioned so that up to three pH, ORP or temperature transducers can be installed. In addition, a stainless steel rod is integrated as a liquid reference potential. The outside diameter is 75 mm. Immersion depths of 1 and 2 m are offered, however customers can independently shorten the immersion pipe. The fitting head contains four cable connectors; measuring lines of 3-7 mm diameter can be led out.

Note: Measuring lines are not included in the scope of delivery.

Material

Probe housing material: PP

Seal material: FKM

Max. temperature 80 °C
Pressure Installation at atmospheric pressure
Immersion depth Max. 1, or 2 m; variable
Immersion lance diameter 75 mm

Dimensions Table: Flange

Fixed flange DN 65
Hole circle Ø K 145 mm
Screws 4 x M16
Thickness d2 18 mm
Diameter Ø D 185 mm
Length when fitted Order no.
m
IPHa 3-PP 1 1008602
IPHa 3-PP 2 1008603

Other materials available on request.

FKM = Fluorine Rubber

Accessories for Fitting Type IPHa 3

Order no.
Immersion pipe mounting for lPHa 3-PP 1008625
Clamped threaded connector with fixed flange DN 65 according to DIN 2642 for lPHa 3-PP 1008627
Clamped threaded connector for welding connection for lPHa 3-PP 1008629
Protective (weatherproofed) cover for assembly head for lPHa 3-PP 1008631
Water-retaining basin for IPHa 3-PP 1008633
Weatherproof cover PP 1023368
  • pk_6_081
  • pk_6_094_flansch

PVC Immersion Assembly Type ETS 1 P

Immersion fitting to hold one conductivity, Pt 100, pH or ORP sensor with SN6 plug-in head and PG 13.5 screw-in thread. In addition, a stainless steel rod is integrated as a liquid reference potential.

Sensor connector (inner) SN6 connector
Signal lead connector (outer) Coax SN6 male connector
Material Rigid PVC
Type of fitting Clamping flange with mounting plate
Immersion depth Variable
Max. temperature 55 °C
Order no.
ETS 1 P 914950
  • pk_6_064
